Electromagnetic Compatibility and Interference

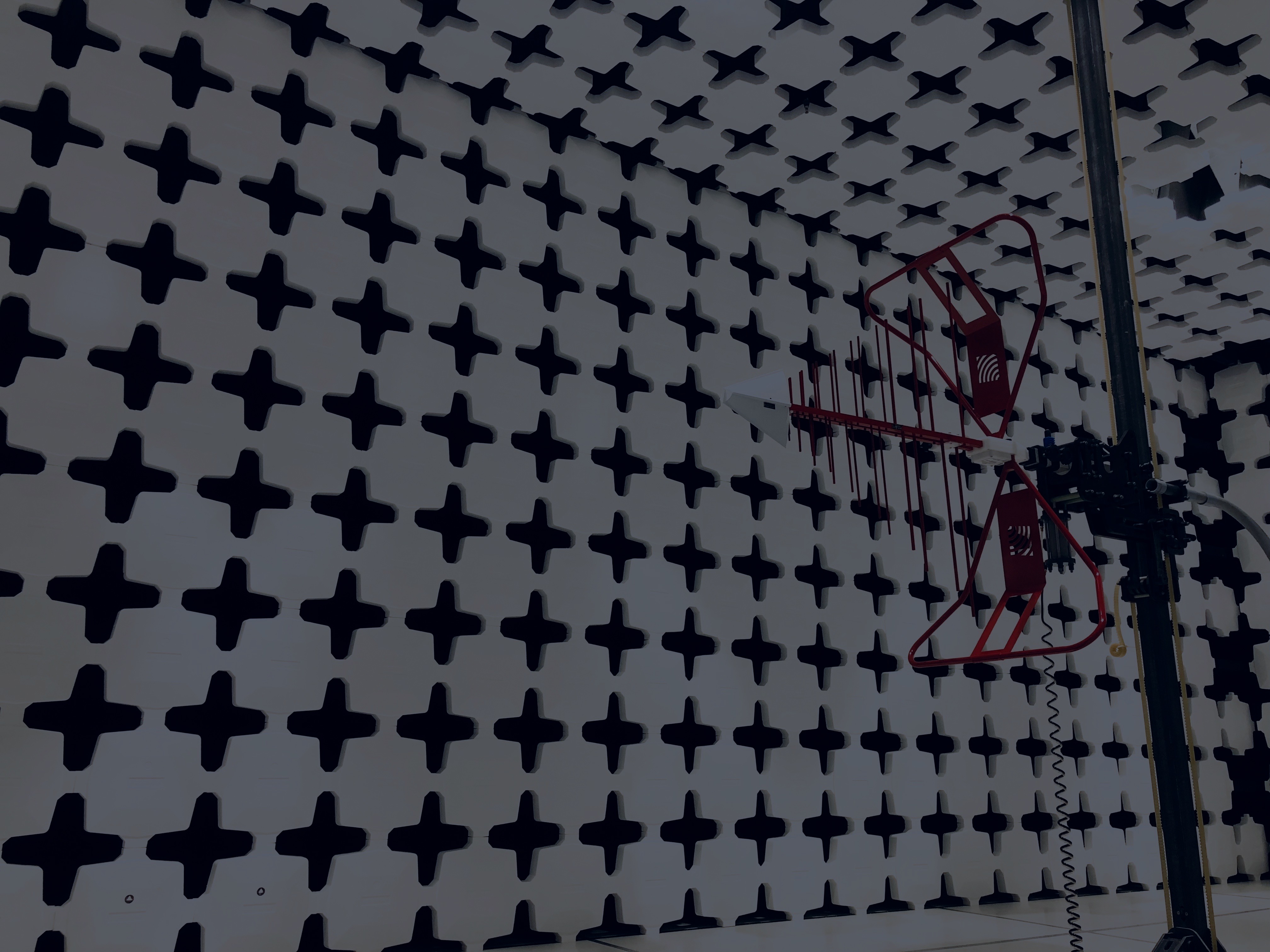

Our state-of-the-art EMC test laboratory includes a 10m semi-anechoic chamber, a radiated immunity test chamber, conducted emissions testing system, and other conducted immunity testing systems.
Equipped with the most advanced measurement & test equipment, our lab is capable of testing frequency ranges of up to 120GHz and uniform field levels of 30 V/m.
We use fully automated measurement & reporting software to ensure the accuracy of data acquisition, as well as fast test report generation.
The Vista Labs Difference
- 10m chamber measurement results and data are accepted by Taiwan and South Korea.
- Software automation ensure that testing is performed efficiently.
- Full suite of testing covering EMC/EMI emissions and immunity.
We offer cost-effective solutions, flexible scheduling, excellent lead-times, and provide testing solutions. All testing and reporting is performed in a reasonable/timely manner, with your specific requirements in mind.
EMC/EMI Testing Capabilities
| Test Item | Test Level | Typical Standard |
|---|---|---|
| Radiated Emissions | 9KHz to 120 Ghz | CISPR22, CISPR32, EN 55022, EN 55032 EN 60601-1-2, FCC Part 15/Part18, ICES-003, VCCI |
| Conducted Emissions | 100-230VAC, 9KHz - 30MHz | CISPR22, CISPR32, EN 55022 EN 55032, EN 60601-1-2, FCC Part 15/Part18, ICES-003, VCCI |
| Harmonics and Flickers | 100-230VAC, 16A | EN 61000-3-2, EN 61000-3-3 |
| Radiated Immunity | Up to 30V, 0.15MHz to 80MHz | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-3 |
| Conducted Immunity | Up to 30V, 0.15MHz to 80MHz | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-3 |
| Electrostatic Discharge | 30kV | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-2 |
| EFT/B Immunity | 6KV | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-4 |
| Surge Immunity | 6KV | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-5 |
| Interruption and Dips | 100-230VAC | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-11 |
| Power Magnetic Fields | 50/60Hz, 100A/m | CISPR24, EN 55024, EN 60601-1-2, EN 61000-4-8 |
Accreditation
View our comprehensive testing scope, standards we cover, and see our full accreditation here.
Have a Question?
Our team is available to answers questions and discuss your specific needs at your convenience.
